Overview:

  • 3.1: Static data management through a post-deployment script
  • 3.2: Deploy script and environment approvals
  • 3.3: Deploy report and summarizing dangers

3.1 Static data management through a post-deployment script

In this section we’re going to tackle the need for specific data to always be present in the Countries table and the VenueTypes table.

  1. Return to the original workshop folder in VS Code.
  2. In the SQL projects extension, right-click on the Wingtips project and select Add Post-Deployment Script.
  3. Name the post-deployment script StaticData.
  4. In the post-deployment script, add the following code:
  MERGE INTO [dbo].[Countries] as [target]
  USING (VALUES
      ('USA', 'United States','en-us')
  ) as [source] ([CountryCode],[CountryName],[Language])
  ON [target].[CountryCode] = [source].[CountryCode]
  WHEN MATCHED THEN
      UPDATE SET [target].[CountryName] = [source].[CountryName], [target].[Language] = [source].[Language]
  WHEN NOT MATCHED BY TARGET THEN
      INSERT
      ([CountryCode],[CountryName],[Language])
  VALUES
      ([CountryCode],[CountryName],[Language]);
  GO


  MERGE INTO [dbo].[VenueTypes] AS [target]
  USING (VALUES
      ('multipurpose','Multi-Purpose Venue','Event', 'Event','Events','en-us'),
      ('classicalmusic','Classical Music Venue','Classical Concert','Concert','Concerts','en-us'),
      ('jazz','Jazz Venue','Jazz Session','Session','Sessions','en-us'),
      ('judo','Judo Venue','Judo Tournament','Tournament','Tournaments','en-us'),
      ('soccer','Soccer Venue','Soccer Match', 'Match','Matches','en-us'),
      ('motorracing','Motor Racing Venue','Car Race', 'Race','Races','en-us'),
      ('dance', 'Dance Venue', 'Dance Performance', 'Performance', 'Performances','en-us'),
      ('blues', 'Blues Venue', 'Blues Session', 'Session','Sessions','en-us' ),
      ('rockmusic','Rock Music Venue','Rock Concert','Concert', 'Concerts','en-us'),
      ('opera','Opera Venue','Opera','Opera','Operas','en-us')
  ) AS source(
      VenueType,VenueTypeName,EventTypeName,EventTypeShortName,EventTypeShortNamePlural,[Language]
  )
  ON [target].VenueType = source.VenueType
  -- update existing rows
  WHEN MATCHED THEN
      UPDATE SET
          VenueTypeName = source.VenueTypeName,
          EventTypeName = source.EventTypeName,
          EventTypeShortName = source.EventTypeShortName,
          EventTypeShortNamePlural = source.EventTypeShortNamePlural,
          [Language] = source.[Language]
  -- insert new rows
  WHEN NOT MATCHED BY TARGET THEN
      INSERT (VenueType,VenueTypeName,EventTypeName,EventTypeShortName,EventTypeShortNamePlural,[Language])
      VALUES (VenueType,VenueTypeName,EventTypeName,EventTypeShortName,EventTypeShortNamePlural,[Language])
  ;
  GO

Notice how the code is idempotent using a MERGE statement. This means that if the data already exists in the table, it will be updated. If it does not exist, it will be inserted. No matter how many time the script is run, the outcome should be the same.

  1. Create a new branch in VS Code called static-data.
  2. Commit the changes from the new post deployment script and push the static-data branch to the GitHub repository.
  3. Create a pull request in GitHub to merge the static-data branch into the main branch.
  4. If your CI static code analysis passes, merge the pull request.
  5. Deploy the main branch to the primary Azure SQL Database with the Deploy SQL project pipeline in GitHub actions.
  6. Check the Countries and VenueTypes tables in the Azure SQL Database to verify that the data was added.
  7. Modify the post-deployment script to add two additional venue types:
      ('motorcycleracing','Motorcycle Racing Venue','Motorcycle Race', 'Race', 'Races', 'en-us'),
      ('swimming','Swimming Venue','Swimming Meet','Meet','Meets','en-us')
  1. Commit the changes from the new post deployment script and push the static-data branch to the GitHub repository.
  2. Create a pull request in GitHub to merge the static-data branch into the main branch.
  3. If your CI static code analysis passes, merge the pull request.
  4. Deploy the main branch to the primary Azure SQL Database with the Deploy SQL project pipeline in GitHub actions.
  5. Check the VenueTypes table in the Azure SQL Database to verify that the complete set of data was added.

Update your local repository from GitHub

Before we can make more changes to our project, we need to make sure our local repository is up to date with the latest changes from GitHub.

  1. Switch the branch in VS Code to main.
  2. In the terminal, run the following command to update your local repository with the latest changes from GitHub:
      git pull origin main

3.2 Deploy script and environment approvals

In this section, we will extend our continuous deployment pipeline Deploy SQL project to generate a script representing the upcoming deployment and block the actual deployment on a manual approval. In GitHub actions, requiring a manual approval is done by creating an environment and assigning one or more reviewers to the environment. The reviewers will receive a notification when a deployment is requested to the environment, who can then approve or reject the deployment.

At the end of this section, your deployment pipeline will still be manually triggered, but it will generate a script that can be reviewed before the actual deployment is performed. The deployment will be blocked until the reviewer approves the deployment. In your environment, you might have multiple reviewers or reviewers from different teams.

Note: to use these features in GitHub actions, you need to have GitHub Enterprise or set your repository to public visibility. For purposes of this practice lab, you can set the repository to public.

Setup the environment requiring approvals

  1. In the GitHub repository, click on the Settings tab.
  2. In the left pane, click on Environments.
  3. Click on the New environment button.

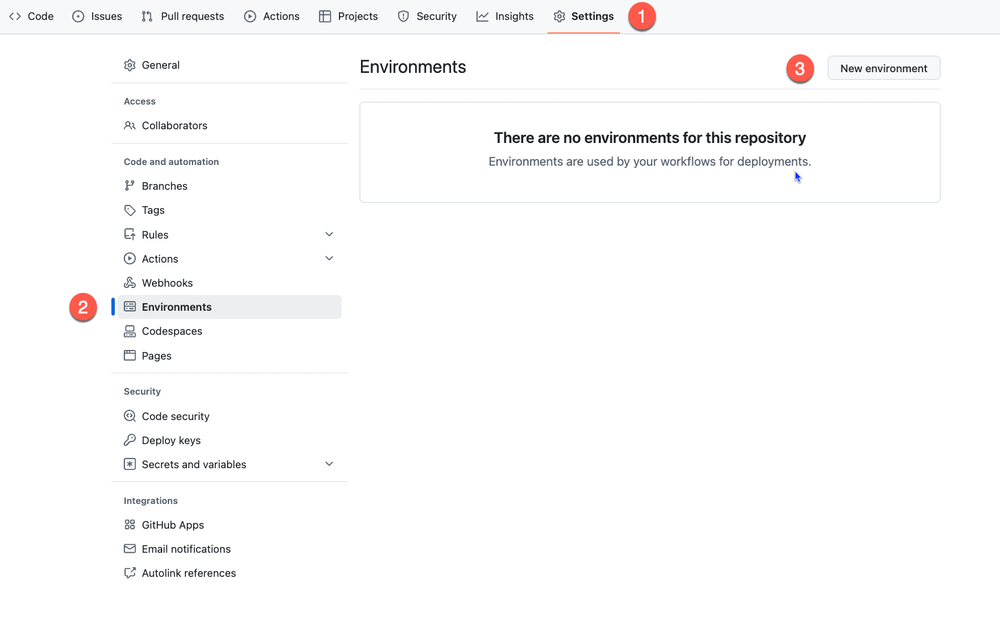

New environment

  1. Name the environment ProductionDeployment and click on Configure environment.
  2. Check the box for Required reviewers and add yourself as a reviewer.
  3. Click on Save protection rules.

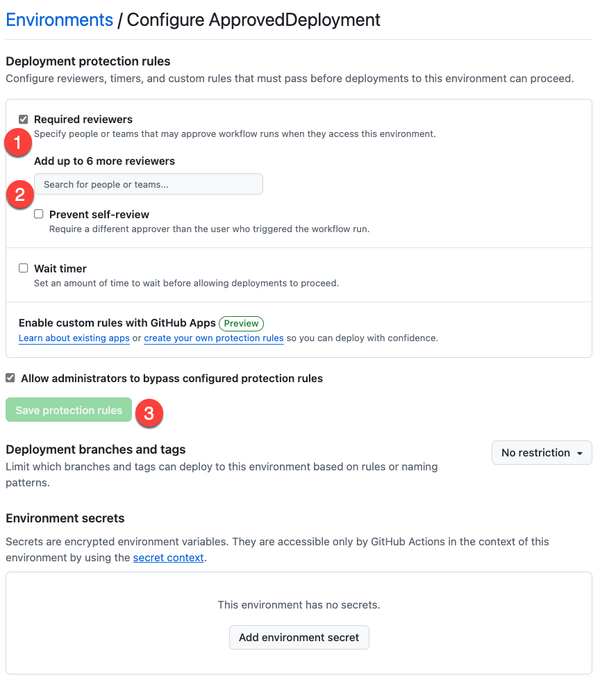

Required reviewers restriction

Update the pipeline to use the environment

  1. In VS Code, open the publish.yml file in the .github/workflows folder.
  2. Move the steps: section under the build job to be under the steps: section of second job in the workflow named deploy.
...
jobs:
  build:


  deploy: # new job
    runs-on: ubuntu-22.04
...
  1. Modify the deploy job to use the ProductionDeployment environment (environment: ProductionDeployment) and add a needs: setting to ensure that the deploy job runs after the build job (needs: build). The needs: setting is used to specify that the deploy job depends on the successful completion of the build job and the environment: setting is used so the job will run in the ProductionDeployment environment we just created that requires approval.
  deploy:
    runs-on: ubuntu-22.04
    environment: ProductionDeployment
    needs: build
  1. Add 3 steps and a runs-on setting to the build job to build the project, use SqlPackage to generate a deployment script, and archive the script for review. Generating a deployment script with SqlPackage uses the SqlPackage script action, which uses the same parameters and properties as the publish action but does not perform the actual deployment in lieu of outputting the script it would execute. In our example we’re sending the deployment script to a file named WingtipsDeploy.sql in the root of the repository.
  build:
    runs-on: ubuntu-22.04

    steps:
    - uses: actions/checkout@v4
    - name: Setup .NET
      uses: actions/setup-dotnet@v4
      with:
        dotnet-version: 8.0.x
    - name: Restore dependencies
      run: dotnet restore Wingtips/Wingtips.sqlproj
    - name: Build
      run: dotnet build Wingtips/Wingtips.sqlproj --no-restore
    - name: Get deploy script
      run: |
        sqlpackage /Action:Script /SourceFile:Wingtips/bin/Debug/Wingtips.dacpac /TargetConnectionString:"${{ secrets.SQL_CONNECTION_STRING }}" /OutputPath:WingtipsDeploy.sql
    - name: Upload SQL script
      uses: actions/upload-artifact@v3
      with:
        name: WingtipsDeploy.sql
Entire 2-job workflow

name: Deploy SQL project

on:
  workflow_dispatch:

jobs:
  build:
    runs-on: ubuntu-22.04

    steps:
    - uses: actions/checkout@v4
    - name: Setup .NET
      uses: actions/setup-dotnet@v4
      with:
        dotnet-version: 8.0.x
    - name: Restore dependencies
      run: dotnet restore Wingtips/Wingtips.sqlproj
    - name: Build
      run: dotnet build Wingtips/Wingtips.sqlproj --no-restore
    - name: Get deploy script
      run: |
        sqlpackage /Action:Script /SourceFile:Wingtips/bin/Debug/Wingtips.dacpac /TargetConnectionString:"${{ secrets.SQL_CONNECTION_STRING }}" /OutputPath:WingtipsDeploy.sql
    - name: Upload SQL script
      uses: actions/upload-artifact@v4
      with:
        name: ReviewDeploymentScript
        path: WingtipsDeploy.sql


  deploy:
    runs-on: ubuntu-22.04
    environment: ProductionDeployment
    needs: build

    steps:
    - uses: actions/checkout@v4
    - name: Setup .NET
      uses: actions/setup-dotnet@v4
      with:
        dotnet-version: 8.0.x
    - name: Restore dependencies
      run: dotnet restore Wingtips/Wingtips.sqlproj
    - name: Build
      run: dotnet build Wingtips/Wingtips.sqlproj --no-restore
    - name: Publish SQL project
      run: |
        sqlpackage /Action:Publish /SourceFile:Wingtips/bin/Debug/Wingtips.dacpac /TargetConnectionString:"${{ secrets.SQL_CONNECTION_STRING }}"
  1. Commit the changes to the publish.yml file and push the changes to the main branch.
  2. In the GitHub repository, click on the Actions tab.
  3. Click on the Deploy SQL project workflow.
  4. Click on the Run workflow button.
  5. When the workflow is running, click on the current run to see the details.
  6. The 2 jobs of the workflow will run in series, with the build job running first. When the build job is complete with success, an artifact will be created with the name ReviewDeploymentScript and the script will be available for download. You will find this artifact in the Artifacts section of the workflow run. Click on the ReviewDeploymentScript artifact to download and review the script.

We haven’t made any changes to the project, so the deployment script will include the post-deployment script that we added in the previous section but no changes to object definitions.

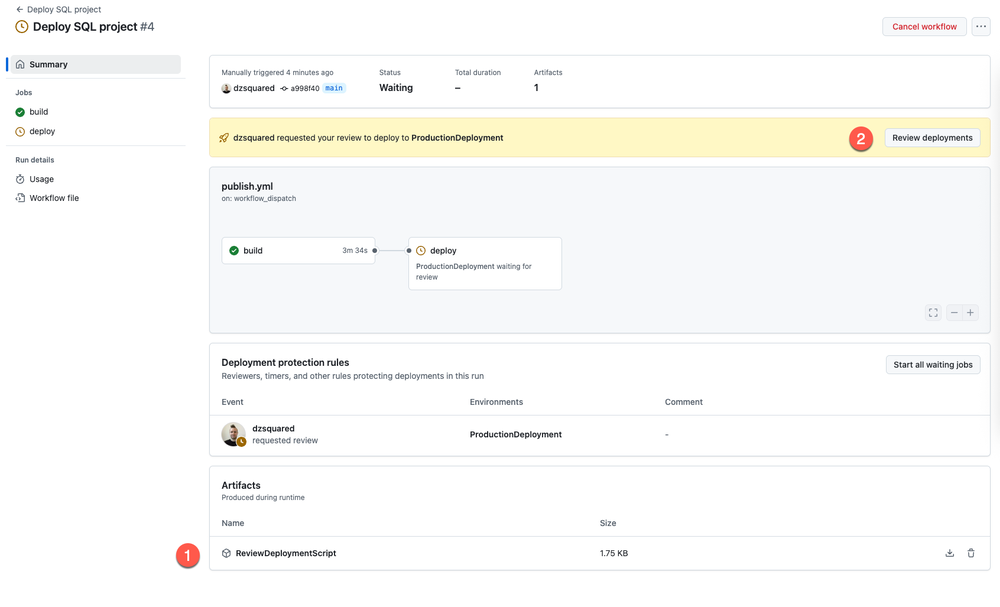

Deploy approval

  1. When you’ve reviewed the script, click on the Review deployments button to approve the job to be run in the ProductionDeployment environment. This will enable the deploy job to run, which will start immediately since we waited for the build job to complete successfully. The deploy job will run the deployment against the Azure SQL Database.

3.3 Deploy report and summarizing dangers

Since we are expecting to have multiple reviewers in the future, we need to make sure that the reviewers are aware of the changes that are being deployed and understand the changes. To make this easier, we will add a step to the build job to parse a report of the changes that are being deployed and make any warnings obvious.

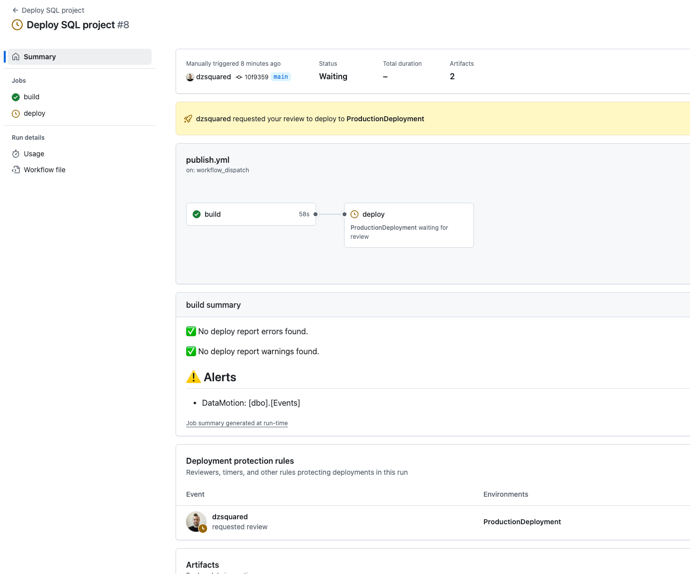

In GitHub, the environment variable GITHUB_STEP_SUMMARY is displayed at the end of the workflow run and can be used to provide information about the changes that will be applied to a database. We will use this variable to display the highlights from the SqlPackage DeployReport capability.

  1. In VS Code, create a file deployReportOutput.ps1 in the .github/workflows folder.
  2. This PowerShell script will be used to parse the XML output of the SqlPackage DeployReport capability and put the results in a markdown file for further use. Add the following code to the deployReportOutput.ps1 file:
# output markdown from Errors, Warnings, and Alerts of a deploy report
# passes the markdown deployreport.md file
# ## Errors
# - Error
# - Error
# ## Warnings
# - Warning
# - Warning
# ## Alerts
# - Alert.Name
#   - Issue.Value

param(
  [Parameter(Mandatory=$true)]
  [string]$deployReportFile,

  [Parameter(Mandatory=$false)]
  [bool]$debugMode = $False
)

if ($debugMode) {
    Write-Host "Deploy report file: $deployReportFile"
}

# Load the XML file
[xml]$xml = Get-Content $deployReportFile
$deployReport = $xml.DeploymentReport
$markdownOutput = ""

# if there are errors, write them to the output
$errors = $deployReport.Errors.Error
$warnings = $deployReport.Warnings.Warning
$alerts = $deployReport.Alerts.Alert
$errorsCount = $errors.Count
$warningsCount = $warnings.Count
$alertsCount = $alerts.Count

# Write the errors to the output
if ($errorsCount -gt 0) {
    $markdownOutput += "## 🛑 Deploy Report Errors`n`n"
    if ($debugMode) {
        Write-Host "## 🛑 Deploy Report Errors"
    }
    foreach ($error in $errors) {
        if ($debugMode) {
            Write-Host "- $($error)"
        }
        $markdownOutput += "- $($error)`n"

    }
} else {
    if ($debugMode) {
        Write-Host "✅ No deploy report errors found."
    }
    $markdownOutput += "✅ No deploy report errors found.`n`n"
}

# Write the warnings to the output
if ($warningsCount -gt 0) {
    $markdownOutput += "## ⚠️ Deploy Report Warnings`n`n"
    if ($debugMode) {
        Write-Host "## ⚠️ Deploy Report Warnings"
    }
    foreach ($warning in $warnings) {
        if ($debugMode) {
            Write-Host "- $($warning)"
        }
        $markdownOutput += "- $($warning)`n"
    }
} else {
    if ($debugMode) {
        Write-Host "✅ No deploy report warnings found."
    }
    $markdownOutput += "✅ No deploy report warnings found.`n`n"
}

# write the alerts to the output
if ($alertsCount -gt 0) {
    $markdownOutput += "## ⚠️ Alerts`n`n"
    if ($debugMode) {
        Write-Host "## ⚠️ Alerts"
    }
    foreach ($alert in $alerts) {
        $thisAlert = $alert.Name
        foreach ($issue in $alert.Issue) {
            if ($debugMode) {
                Write-Host "- $($thisAlert): $($issue.Value)"
            }
            $markdownOutput += "- $($thisAlert): $($issue.Value)`n"
        }
    }
} else {
    if ($debugMode) {
        Write-Host "✅ No deploy report alerts found."
    }
    $markdownOutput += "✅ No deploy report alerts found.`n`n"
}

# Write the markdown output to the deployreport.md file
# This will be used to display the output in the GitHub Actions UI
$deployReportFile = "deployreport.md"
$markdownOutput | Out-File -FilePath $deployReportFile -Encoding utf8

# Write the markdown output to the console
if ($debugMode) {
    Write-Host $markdownOutput
}
  1. In the publish.yml workflow file, add steps a the end of the buildjob (after the step Upload SQL script) to:
    • run SqlPackage with the DeployReport action
    • pass the output to the deployReportOutput.ps1 script
    • read (cat) the deployreport.md file and send it into the GITHUB_STEP_SUMMARY environment variable

    - name: Generate deploy report
      run: |
        sqlpackage /Action:DeployReport /SourceFile:Wingtips/bin/Debug/Wingtips.dacpac /TargetConnectionString:"${{ secrets.SQL_CONNECTION_STRING }}" /OutputPath:WingtipsDeployReport.xml
    - name: Prettify deploy report
      shell: pwsh
      run: .github/workflows/deployReportOutput.ps1 -deployReportFile WingtipsDeployReport.xml
    - name: output step summary
      run: |
        cat deployreport.md >> $GITHUB_STEP_SUMMARY
Entire 2-job workflow
name: Deploy SQL project

on:
  workflow_dispatch:

jobs:
  build:
    runs-on: ubuntu-22.04

    steps:
    - uses: actions/checkout@v4
    - name: Setup .NET
      uses: actions/setup-dotnet@v4
      with:
        dotnet-version: 8.0.x
    - name: Restore dependencies
      run: dotnet restore Wingtips/Wingtips.sqlproj
    - name: Build
      run: dotnet build Wingtips/Wingtips.sqlproj --no-restore
    - name: Get deployment script
      run: |
        sqlpackage /Action:Script /SourceFile:Wingtips/bin/Debug/Wingtips.dacpac /TargetConnectionString:"${{ secrets.SQL_CONNECTION_STRING }}" /OutputPath:WingtipsDeploy.sql
    - name: Upload SQL script
      uses: actions/upload-artifact@v4
      with:
        name: ReviewDeploymentScript
        path: WingtipsDeploy.sql
    - name: Generate deploy report
      run: |
        sqlpackage /Action:DeployReport /SourceFile:Wingtips/bin/Debug/Wingtips.dacpac /TargetConnectionString:"${{ secrets.SQL_CONNECTION_STRING }}" /OutputPath:WingtipsDeployReport.xml
    - name: Prettify deploy report
      shell: pwsh
      run: .github/workflows/deployReportOutput.ps1 -deployReportFile WingtipsDeployReport.xml
    - name: output step summary
      run: |
        cat deployreport.md >> $GITHUB_STEP_SUMMARY

  deploy:
    runs-on: ubuntu-22.04
    environment: ProductionDeployment
    needs: build

    steps:
    - uses: actions/checkout@v4
    - name: Setup .NET
      uses: actions/setup-dotnet@v4
      with:
        dotnet-version: 8.0.x
    - name: Restore dependencies
      run: dotnet restore Wingtips/Wingtips.sqlproj
    - name: Build
      run: dotnet build Wingtips/Wingtips.sqlproj --no-restore
    - name: Publish SQL project
      run: |
        sqlpackage /Action:Publish /SourceFile:Wingtips/bin/Debug/Wingtips.dacpac /TargetConnectionString:"${{ secrets.SQL_CONNECTION_STRING }}"
  1. Commit the changes to the publish.yml file and push the changes to the main branch.

To test out our expanded workflow, we will add a column to the Events table and see how the deploy report can help us catch changes that should only be deployed in certain circumstances.

  1. Create a new branch in VS Code called event-parentid.
  2. Open the Events.sql file in the Wingtips project (Wingtips/dbo/Tables/Events.sql) and add a new column ParentEventId to the Events table between the Subtitle and Date columns. The new column should be of type INT and allow null values.
CREATE TABLE [dbo].[Events] (
    [VenueId]            INT           NOT NULL,
    [EventId]            INT IDENTITY  NOT NULL,
    [EventName]          NVARCHAR(50)  NOT NULL,
    [Subtitle]           NVARCHAR(50)  NULL,
    [ParentEventId]       INT           NULL,
    [Date]               DATETIME      NOT NULL,
    [RowVersion]         ROWVERSION    NOT NULL,
    PRIMARY KEY CLUSTERED ([VenueId], [EventId] ASC),
    CONSTRAINT [FK_Events_Venues] FOREIGN KEY ([VenueId]) REFERENCES [Venues]([VenueId])
);

GO
  1. Commit the changes to the Events.sql file and push the changes to the event-parentid branch.
  2. Create a pull request in GitHub to merge the event-parentid branch into the main branch.
  3. If your CI static code analysis passes, merge the pull request.
  4. In the GitHub repository, click on the Actions tab.
  5. Click on the Deploy SQL project workflow.
  6. Click on the Run workflow button.

When the build job is complete, a build summary section will be populated with the results of parsing the SqlPackage deploy report. Lower on the page, the deploy script will still be available for download to learn more details about the changes that are proposed for deployment.

Deploy report

  1. Since the build summary section includes an alert for data motion, we know we need to be sure to consider the deployment more carefully. Armed with the name of the table, we might check how large the table is or how much traffic it gets during our deployment window before proceeding.

  2. Don’t know what “data motion” means? Check out the deployment script artifact to see what the SqlPackage deployment will need to do to add the column in the middle of the table.

  3. How you finish up this lab is up to you. A few options:

    • You can approve the deployment and let it run
    • You can reject the deployment (cancel the job) and modify the project to move the column to the end of the table
    • You can modify the Script, DeployReport, and Publish steps to use a SqlPackage property to customize how column additions are handled. (hint- aka.ms/sqlpackage-ref and /p:IgnoreColumnOrder=true)

Next lab

Lab 4: Troubleshooting and Optimizing DevOps Workflows
